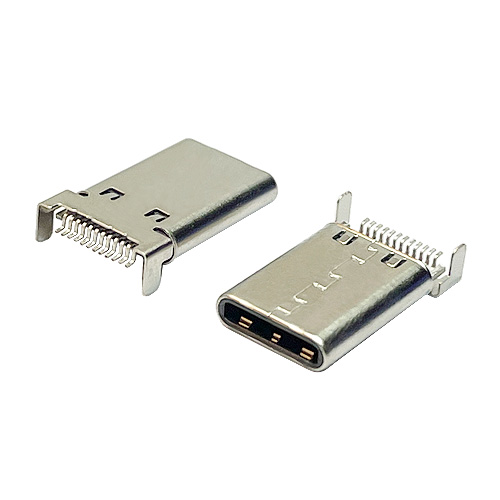

USB Type C Male 90 Degree Dual Row SMT (Surface Mount Technology) connectors offer compact, robust, and versatile connectivity for modern electronic devices. Despite their advantages, users may encounter performance issues that can affect device functionality. This guide provides expert advice on diagnosing and resolving common performance problems with USB Type C Male 90 Degree Dual Row SMT connectors.
1. Poor or No Connectivity
Problem: Devices connected through the USB Type C connector are not recognized, or the connection is intermittent.
Solution:
- Check Connector Alignment: Ensure that the USB Type C connector is properly aligned with the PCB and that no pins are misaligned or bent. Misalignment can lead to poor connectivity.
- Inspect SMT Soldering: Verify that the solder joints of the connector on the PCB are solid and free from cold solder joints or shorts. Reflow or re-solder any problematic joints if needed.
- Examine Connector Pins: Check for bent, damaged, or misaligned pins inside the connector. Gently straighten any bent pins or replace the connector if necessary.
2. Data Transfer Issues
Problem: Data transfer through the USB Type C connector is slow or unreliable, affecting device performance.
Solution:
- Check Cable Quality: Ensure that the USB Type C cable used is of high quality and meets USB 3.1 or USB 3.2 standards for optimal performance. Poor-quality or damaged cables can affect data transfer speeds.
- Verify Data Line Integrity: Use an oscilloscope or a signal analyzer to check the integrity of the data lines (D+, D-). Ensure that there are no signal integrity issues or excessive noise on the data lines.
- Update Firmware and Drivers: Ensure that the device's firmware and drivers are up to date. Outdated or incorrect firmware and drivers can impact data transfer rates and reliability.
3. Power Delivery Problems
Problem: The connected device does not receive adequate power or exhibits power-related issues.
Solution:
- Verify Power Specifications: Ensure that the USB Type C connector is supplying power according to the USB Power Delivery (PD) specifications. USB Type C can deliver up to 100W, so make sure the power source matches the requirements of the connected device.
- Inspect Power Pins: Check that the VBUS (power) and GND (ground) pins in the connector are properly connected and free from damage. Faulty power pins can lead to inadequate power delivery.
- Measure Voltage Levels: Use a multimeter to measure the voltage levels at the USB Type C connector. Ensure that the voltage is within the expected range and stable.
4. Mechanical Stress and Damage
Problem: The USB Type C connector is subject to mechanical stress or damage, which affects its performance.
Solution:
- Check for Physical Damage: Inspect the connector and surrounding area for any signs of physical damage, such as cracks, bent pins, or wear. Replace the connector if it shows signs of damage.
- Reduce Mechanical Stress: Ensure that the connector is not subject to excessive mechanical stress, such as bending or pulling. Use strain relief mechanisms to prevent stress on the connector and cable.
- Secure the Connector: Make sure the connector is securely mounted on the PCB and not loose. A loose connector can lead to intermittent connections and performance issues.
5. Signal Interference
Problem: Signal interference or noise affects the performance of the USB Type C connector, leading to unreliable operation.
Solution:
- Minimize EMI: Reduce electromagnetic interference (EMI) by using shielded cables and ensuring proper grounding. Keep the connector and cables away from sources of EMI.
- Inspect Grounding: Verify that the grounding connections are solid and properly established. Poor grounding can lead to increased noise and signal degradation.
- Use Ferrite Beads: Implement ferrite beads on the USB cable to filter out high-frequency noise and reduce interference.
6. Connector Compatibility Issues
Problem: Compatibility issues arise between the USB Type C connector and other devices or systems.
Solution:
- Check Specification Compliance: Ensure that the USB Type C connector and associated devices comply with the USB Type C specifications and standards. Incompatibility between devices can cause connectivity issues.
- Verify Device Requirements: Confirm that the devices connected through the USB Type C connector are compatible with the features and capabilities of the connector, such as data transfer speeds and power delivery.
- Consult Documentation: Refer to the datasheet and technical documentation for the USB Type C connector to ensure proper usage and compatibility with your devices.
7. Environmental Factors
Problem: Environmental conditions such as temperature extremes or humidity affect the performance of the USB Type C connector.
Solution:
- Maintain Optimal Conditions: Ensure that the operating environment is within the recommended temperature and humidity ranges for the USB Type C connector. Extreme conditions can impact performance and reliability.
- Protect from Moisture: Use protective enclosures or covers to shield the connector from moisture or contaminants that could cause corrosion or damage.
8. Consult Documentation and Resources
Problem: Troubleshooting may be challenging without detailed information.
Solution:
- Review Technical Documentation: Consult the technical datasheet and installation guide for the USB Type C Male 90 Degree Dual Row SMT connector. These documents provide valuable information on specifications, pin configurations, and recommended practices.
- Utilize Manufacturer Resources: Reach out to the manufacturer for additional support or to access troubleshooting resources such as application notes or technical support teams.
9. Seek Professional Assistance
Problem: If troubleshooting steps do not resolve the issue, professional help may be required.
Solution:
- Contact Technical Support: Reach out to the manufacturer’s technical support team for expert assistance. They can provide guidance and help diagnose complex issues.
- Engage with Industry Experts: Consult with industry experts or experienced technicians who can offer valuable insights and solutions based on their expertise.
Conclusion
Diagnosing and resolving performance issues with USB Type C Male 90 Degree Dual Row SMT connectors involves a systematic approach to identifying and addressing common problems. By inspecting connectors, checking data transfer integrity, addressing power delivery issues, and considering environmental factors, you can ensure reliable performance and connectivity. If needed, consult documentation or seek professional assistance to achieve optimal results.
At Kecheng, we are dedicated to providing expert advice and support for your electronic connectivity needs. For further assistance or questions, don’t hesitate to reach out to our knowledgeable team. Happy troubleshooting!
